GitLab Runner With Caching - OCI Object Storage

Okay, this one is a quick share for how to set up your own GitLab Runner using the cluster we have deployed previously. in Opting for Dual-State In Terraform OCI OKE

We will also be using the OCI Object Storage as a caching layer for our builds.

Prerequisites

Start by creating a runner in your repo's UI. This step is important to get the registration token needed to register the runner

Setting up the GitLab Runner

Under:

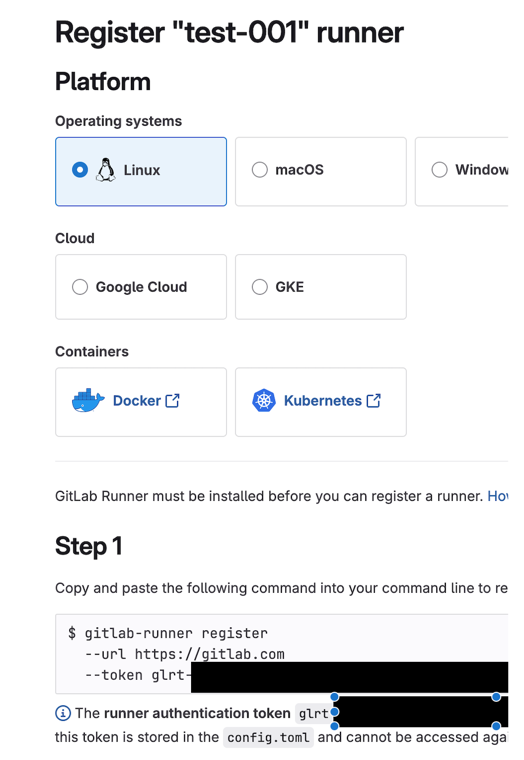

CI/CD Settings -> Runners -> create a new runner:

Save the token somewhere safe as we will need it later

Generate S3 Compatible Credentials for OCI Object Storage

To use OCI Object Storage as a caching layer, we need to create S3 compatible credentials.

Go to the OCI Console.
Navigate to Identity -> Domains.
Select your domain.
Go to the User management tab.
Select your user.

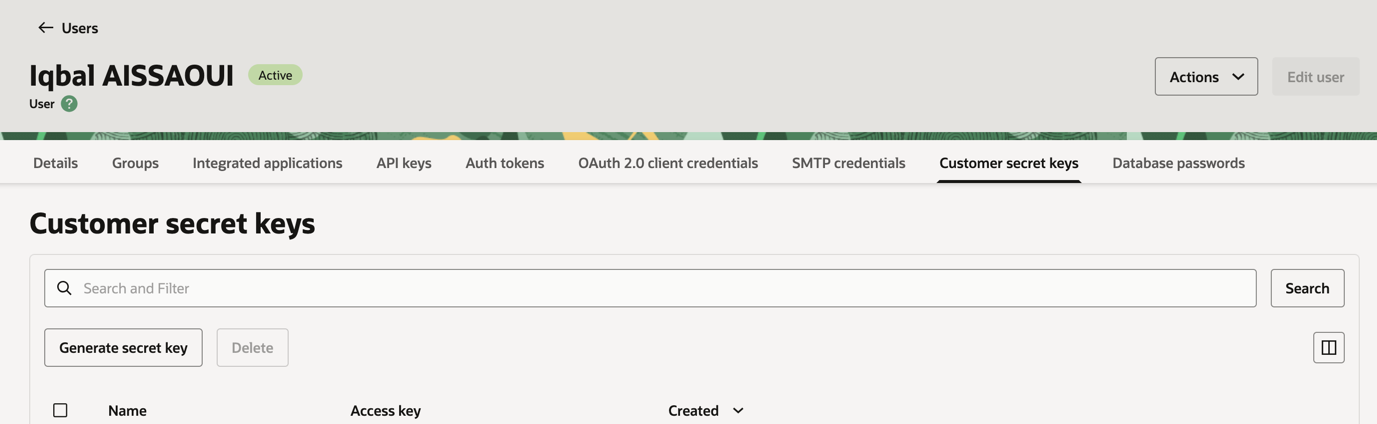

Create a key pair for S3 compatible access under the Customer secret keys tab:

Create a new Policy in OCI IAM

We'll use Terraform to create a new policy that allows access to Object Storage for our GitLab Runner. Here is an example policy you can use, replace <your-namespace> and <your-bucket-name> with your actual namespace and bucket name.

resource "oci_identity_policy" "object_storage_lifecycle_policy" {
  name           = "object-storage-lifecycle-policy"
  description    = "Allow Object Storage service to manage objects for lifecycle policies"
  compartment_id = var.TENANCY_OCID

  statements = [
    "Allow group OCI_Administrators to manage buckets in tenancy",
    "Allow group OCI_Administrators to manage objects in tenancy",
    format("Allow service objectstorage-%s to manage object-family in tenancy", var.REGION)
  ]
}

Create OCI Object Storage Bucket

You can create the bucket using Terraform as well. We will use depends_on to ensure the policy is created before the bucket.

data "oci_objectstorage_namespace" "os_ns" {}


resource "oci_objectstorage_bucket" "ci_cache_bucket" {
  compartment_id = var.TENANCY_OCID
  name           = "ci-cache"
  namespace      = data.oci_objectstorage_namespace.os_ns.namespace

  access_type  = "NoPublicAccess"
  storage_tier = "Standard"

  versioning = "Disabled"

  depends_on = [oci_identity_policy.object_storage_lifecycle_policy]
}

And you can attach lifecycle policies as needed. Here is an example that deletes objects after 60 days:

resource "oci_objectstorage_object_lifecycle_policy" "cache_cleanup_policy" {
  bucket    = oci_objectstorage_bucket.ci_cache_bucket.name
  namespace = data.oci_objectstorage_namespace.os_ns.namespace

  rules {
    name       = "delete-objects-after-60-days"
    action     = "DELETE"
    is_enabled = true

    time_amount = 60
    time_unit   = "DAYS"
  }
}

Deploying the GitLab Runner, with Terraform

Now that we have the bucket and policy set up, we can deploy the GitLab Runner using Terraform.

resource "kubernetes_namespace" "runner_ns" {
  metadata { name = var.gitlab_runner_namespace }
}


resource "helm_release" "gitlab_ci_runner" {
  name       = "ci-runner"
  repository = "https://charts.gitlab.io"
  chart      = "gitlab-runner"
  namespace  = kubernetes_namespace.runner_ns.metadata[0].name

  values = [
    <<-YAML
    gitlabUrl: https://gitlab.com/
    unregisterRunners: true
    concurrent: 5

    rbac:
      create: true

    runners:
      name: k8s-ci-runner
      executor: kubernetes
      runUntagged: false
      locked: true
      tags: ["cloud-runner"]

      config: |
        [[runners]]
          [runners.kubernetes]
            namespace = "{{ default .Release.Namespace .Values.runners.jobNamespace }}"
            image = "alpine"
            helper_image = "registry.gitlab.com/gitlab-org/gitlab-runner/gitlab-runner-helper:arm64-v18.4.0"

          [runners.cache]
            Type = "s3"
            Path = "gitlab_runner"
            Shared = true
            [runners.cache.s3]
              BucketName = "${oci_objectstorage_bucket.ci_cache_bucket.name}"
              BucketLocation = "${var.REGION}"
              ServerAddress = "${data.oci_objectstorage_namespace.os_ns.namespace}.compat.objectstorage.${var.REGION}.oraclecloud.com"
              AccessKey = "${var.s3_key}"
              SecretKey = "${var.s3_secret}"
  YAML
  ]

  set_sensitive {
    name  = "runnerToken"
    value = var.gitlab_runner_authentication_token
  }

  depends_on = [kubernetes_namespace.runner_ns, oci_objectstorage_bucket.ci_cache_bucket]
}

You can see the token generated earlier passed as a variable to the Terraform script under gitlab_runner_authentication_token and the key and secret for S3 compatible access as s3_key and s3_secret.

Source Code

08 March 2026
